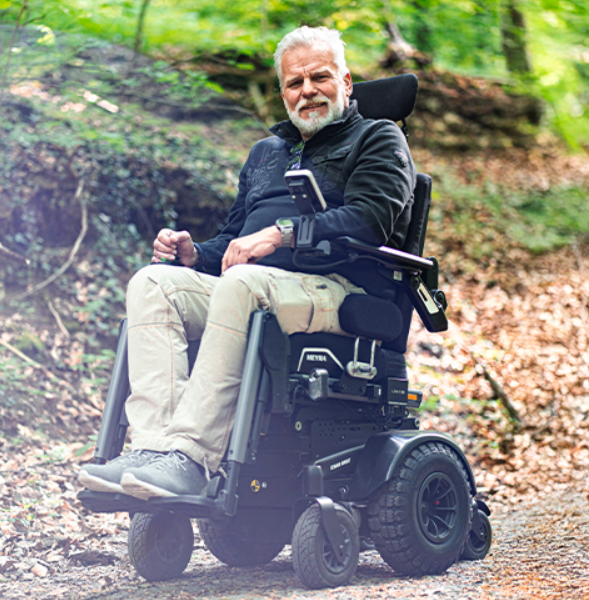

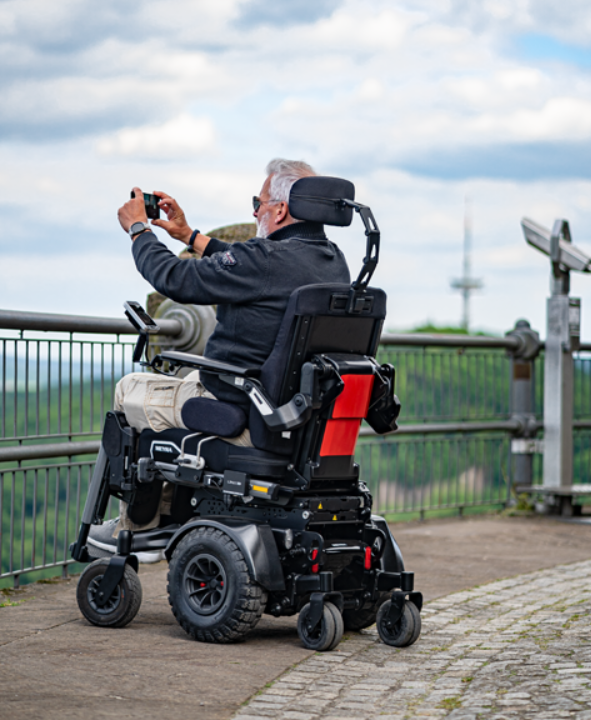

Meyra Orbit 2

Meyra Orbit 2

£6,750.00 GBP
£6,750.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Fields of Application

The uncompromising all-rounder for all application areas and user groups.
More than just a power wheelchair – developed to meet a wide range of needs, from standard to high-end care.

  • Maximum comfort through a biomechanical backrest that reduces pressure points and supports optimal posture.
  • Outstanding driving characteristics
    • Comfortable suspension for high shock absorption
    • Optimized curb-climbing ability for overcoming obstacles
    • Compact design for tight indoor spaces, excellent tracking stability outdoors
  • Individual control: Choice between R-NET & LINX for maximum user-friendliness

Adjustment

  • Future-proof & modular: Adaptable to changing needs, minimizing follow-up costs
  • Functional design
  • Fast & efficient maintenance
    • Modular construction for quick repairs
    • High reusability through flexible retrofitting
Seat width

380, 430,480, 530
Seat depth 400 – 550
Seat height front  425, 460, 495 / 440, 475, 510
Lenght 111 – 133
Back height 520, 570 / 520, 570 / 572, 620
Lower leg length 340 – 480 / 280 – 450
Armrest height 250 – 360 / 220 – 380
Length with footrests central 1.200 – 1.350 /  1.100 – 1.200
Length without footrests 930
Width 12 inches ready to drive 600 / 600 / 640 / 680 / 800
Width 14 inches ready to drive 640 / 640 / 640 / 680 / 800
Height without head rest 940 – 1.180
Transport height min. 680 – 780
Max. obstacle height 60
Turning radius with central legrest 700
Turning radius with single leg rest 800
Ground clearance 70
Empty transport weight basic equipment min. 120 - 165
Permissible total weight 330
Permissible total weight incl. options 10
Max. additional load 6 / 10
Speed 2 x 180 / 2 x 350
Motor power 30 – 45
Range max. 15 %
Permitted uphill / downhill gradient indirect
Steering type 0° to 30° / 0° to 50°
Seat tilt, electrical -10° to 30° / -10° to 50° / 0° to 80°
Back angle, electrical 0°, 4°, 7°, 10°
Seat tilt, mechanical

520, 570 / 520, 570 / 572, 620



Please note: The price shown is the base price. Optional upgrades and customisations may affect the final price.

A free Home Demonstration is Required on this product.
